SUGGESTED RETAIL PRICES LISTED BELOW. CALL FOR YOUR CUSTOM QUOTE. |
|
|

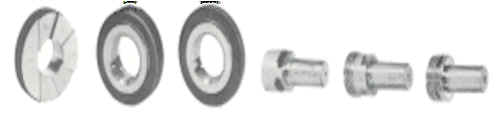

PIPE THREAD GAGES |
||||||||
|
TAPER PIPE THREAD GAGES |
||||||||
| SIZE | NPT | NPTF-ANPT PLUGS | HANDLES | |||||
| PLUG GAGE | BASIC NPTF L-1 or L-3 | 3-STEP NPTF L-1 or L-3 | 6-STEP PLAIN NPTF | SIZE | Price Each | |||
| 1/16-27 | 62.00 | 82.00 | 96.00 | 118.00 | 1 | 8.00 | ||
| 1/8-27 | 39.00 | 55.00 | 73.00 | 121.00 | 2 | 8.00 | ||
| 1/4-18 | 44.00 | 66.00 | 81.00 | 121.00 | 3 | 8.00 | ||
| 3/8-18 | 51.00 | 77.00 | 89.00 | 125.00 | 3 | 8.00 | ||
| 1/2-14 | 57.00 | 90.00 | 108.00 | 125.00 | 4 | 9.00 | ||
| 3/4-14 | 66.00 | 100.00 | 118.00 | 125.00 | 4 | 9.00 | ||
| 1-11 1/2 | 73.00 | 112.00 | 133.00 | 132.00 | 5 | 9.00 | ||
| 1 1/4- 11 1/2 | 80.00 | 126.00 | 144.00 | 142.00 | 5 | 9.00 | ||
| 1 1/2- 11 1/2 | 91.00 | 144.00 | 158.00 | 162.00 | 5 | 9.00 | ||
| 2-11 1/2 | 110.00 | 168.00 | 190.00 | 226.00 | 5 | 9.00 | ||
| 2 1/2-8 | 132.00 | 230.00 | 259.00 | 331.00 | 6 | 13.00 | ||
| 3-8 | 170.00 | 281.00 | 313.00 | 365.00 | 6 | 13.00 | ||
| 3 1/2-8 | 296.00 | QUOTED ON REQUEST | 7 | 13.00 | ||||
| 4-8 | 338.00 | 7 | 13.00 | |||||
| 5-8 | 442.00 | 7 | 13.00 | |||||
| 6-8 | 504.00 | 7 | 13.00 | |||||
|
**Prices may change without notice. |
| OUR PIPE GAGES ARE MANUFACTURED TO FOLLOWING SPECIFICATIONS |
| NPT |
| ANSI/ASME B1.20.1 |
| NPTF |
| ANSI B1.20.5 |
| ANPT |
| MIL-P-7105 |
| THREE STEP GAGES, SHOW THE PERMISSIBLE TOLERANCE FOR THE MAXIMUM, BASIC AND MINIMUM PITCH DIAMETER AND THESE ARE AVAILABLE UPON REQUEST. |
|
